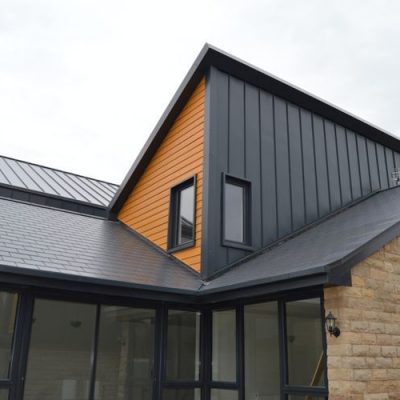

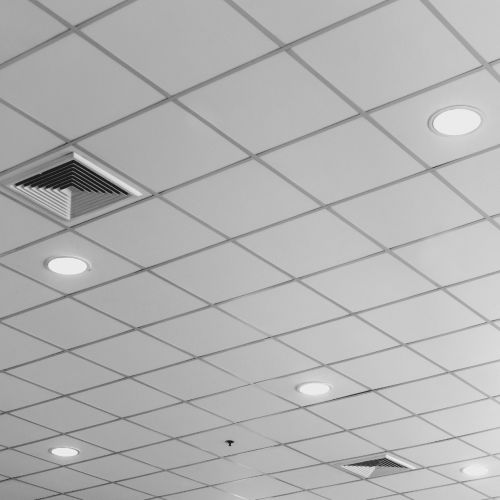

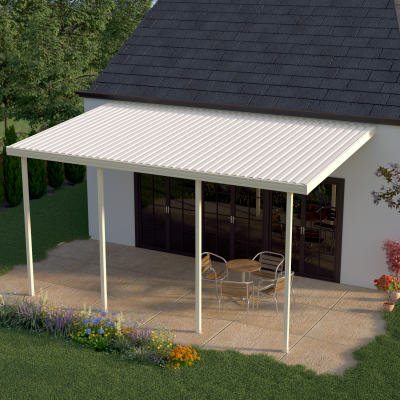

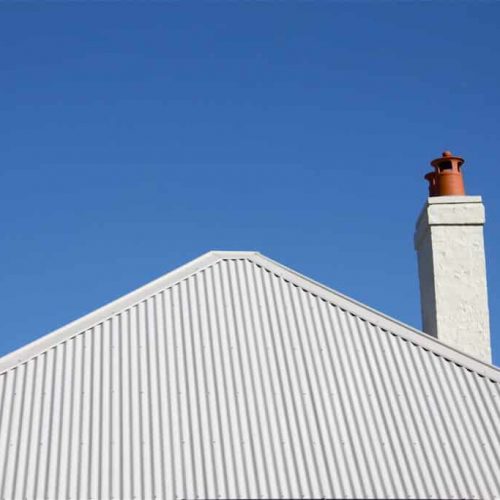

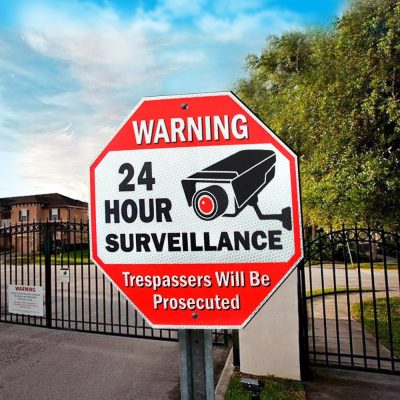

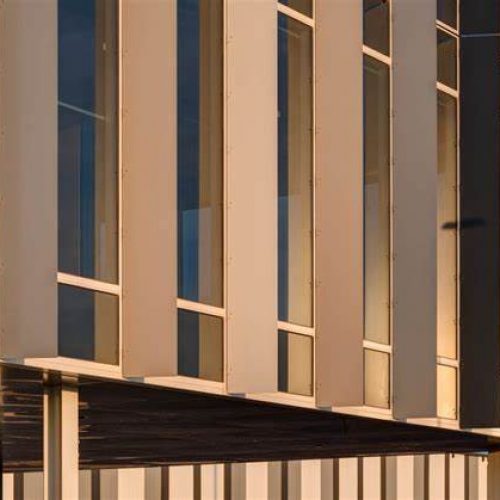

Our color-coated aluminum coil finds applications across a variety of industries, including transportation, building and construction, electronics, signage and advertising, appliances, furniture, packaging, solar energy, and more. This product boasts several distinctive characteristics, including visual appeal, durability, lightweight design, energy efficiency, low maintenance requirements, and environmental friendliness. Despite the slightly higher initial cost and susceptibility to surface scratching, but donnot worry about the problem, we take pride in offering competitive prices and strict quality checking to meet your specific needs.
Furthermore, we provide a wide range of color options to suit your preferences. We understand the diverse requirements of your industries, and our color-coated aluminum coil is engineered to meet these demands. Its visual allure can enhance the aesthetics of your products or projects, while its durability and lightweight construction make it a dependable choice. Its energy efficiency and low maintenance contribute to its practicality, and its environmental attributes align with modern sustainability standards.
We are committed to surpassing your expectations by delivering high-quality products. Additionally, we offer solutions to common concerns. First, in response to limited color options, we provide a broad spectrum of colors for greater project versatility. Next, regarding the higher cost, while our product may have a slightly elevated initial cost, we maintain competitive pricing and deliver added value through its unique benefits. Finally, to address surface scratching, proper handling and care can significantly reduce the likelihood of scratches, extending the lifespan of our color-coated aluminum coil.
If you have any further inquiries or require additional information, just contact us immediately.

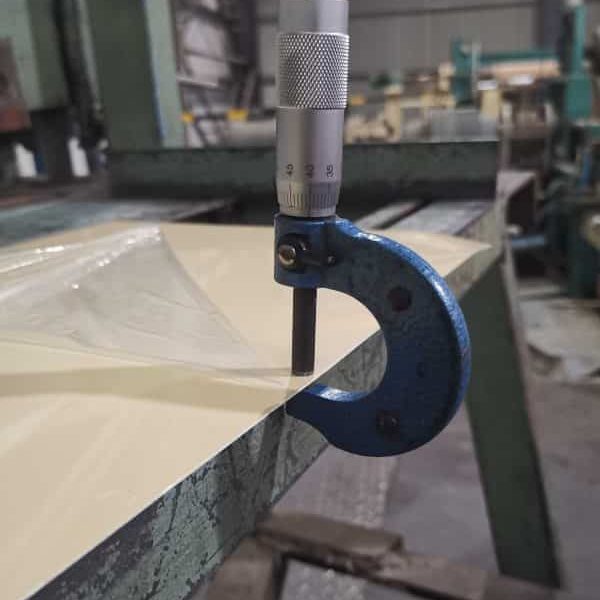

– Surface: Smooth and flat, without obvious scratches, bubbles, bumps, and other defects.

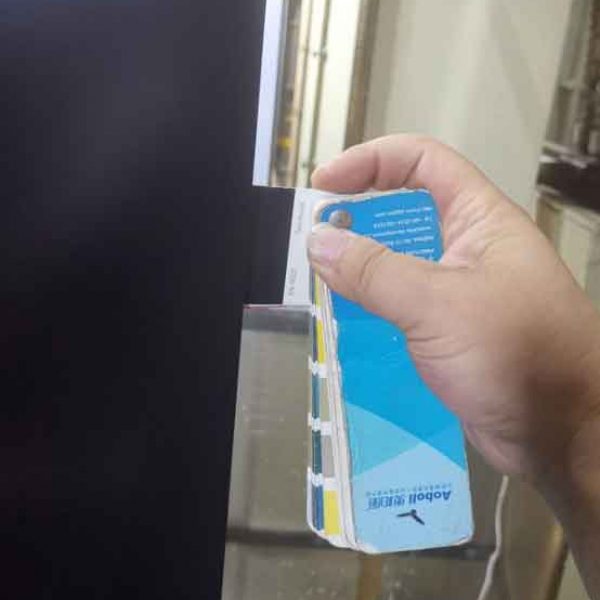

– Color: Uniform and consistent: without color differences, spots, ribbons, etc.

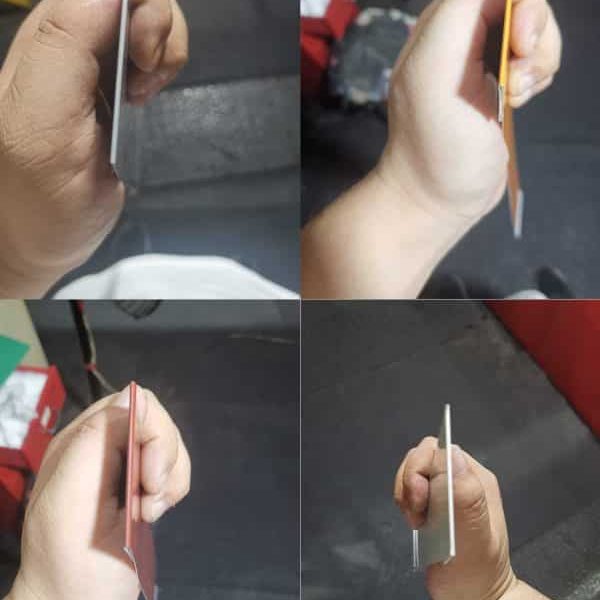

– Coating: Strong adhesion and is not easy to peel, fall off, crack, etc.
– Good Weather Resistance: Resists the erosion of natural environments such as ultraviolet rays, acid rain, and salt spray.
Product | Color Coated Aluminum Coil |
| Thickness | CAL30~CAL9(0.15~3.0mm) |
| Width | 3/4″~70 7/8″(20~1800mm) |
| Material | 1050, 1060, 3003, 3004, 3005, 3105, 5754 |
| Temper | H24, H26,H44,H48 |
| Inner Diameter | 20″/24″ |
| Color | RAL Color Or As Clients Require |
| Coating thickness | PVDF Coating: more than 25micron, around 20 years guarantee |
| PE Coating: more than 18 microns, around 10 years guarantee | |

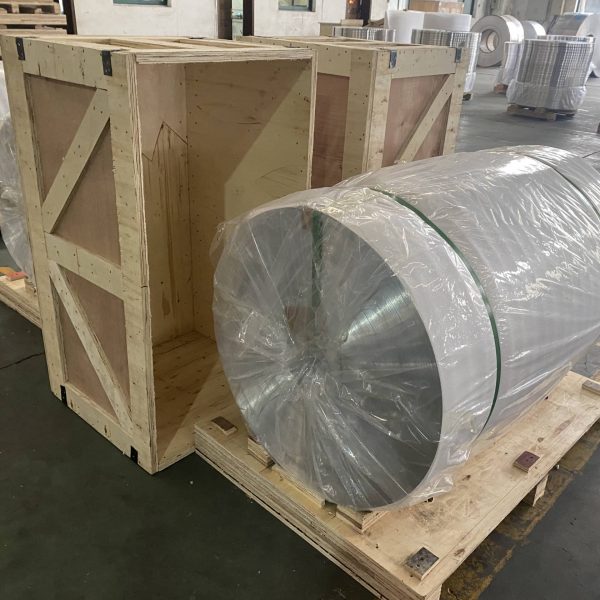

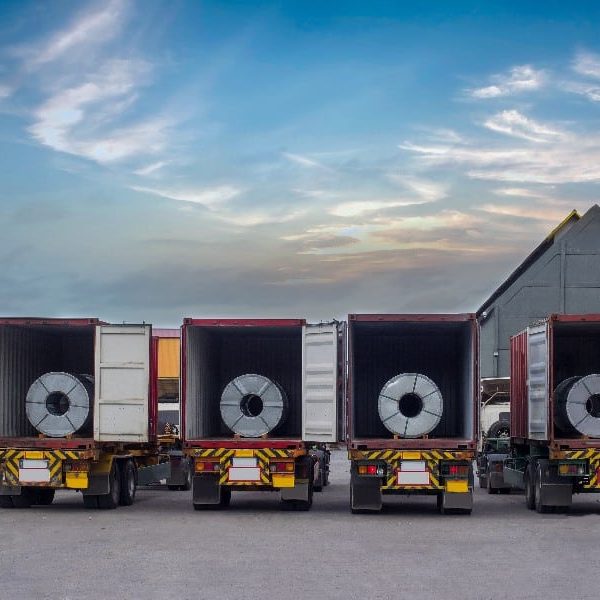

| Packing | Export Standard Wooden Pallets (as per requirements) |
Product | Color Coated Aluminum Coil |
| Thickness | 0.2-3.0mm |
| Width | 575mm、578mm、580mm、595mm、600mm、1000mm/Max 2000mm |
| Material | 1050, 1060, 3003, 3004, 3105, 5754 |
| Temper | H24, H26, |
| Inner Diameter | 508mm,610mm |
| Color | RAL Color Or As Clients Require |
| Coating thickness | PVDF Coating: more than 25micron, around 20 years guarantee |
| PE Coating: more than 18 microns, around 10 years guarantee | |
| Packing | Export Standard Wooden Pallets (as per requirements) |
1.Alloy: 1050, H18
2.Dimensions of Plates:
CAl9 *49″*110″ 13T RAL7042 or RAL7043
CAL9*59″*118″ 13T RAL7042 or RAL7043PVDF 25mic 25mic paint, the Painted side must be facing downwards. Accept 2.5T/ Pallet.
3.Environment: -25 ℃, super cold weather
1.Alloy: 1060-H24
2.Size: CAL24*49″*Coil
3.Painting: PE 25mic/7-8mic
4.Color: RAL9005/RAL7016/9010/7035/8004
5.Package: coil weight less than 2300kg,
6.ID: 610mm, wooden pallet
7.Environment: temperature-2.4℃ to -17℃
1.Alloy: 3003-H24
2.Color: White/Ivory/Cream/Wine red/Grey/ Brown
3.Size: CAL26*4 1/4″*Coil
4.Painting: back 16-18mic with primer, top 25mic with primer
5.Package: Wooden pallet
6.Environment: tropical country, 18℃-38 ℃
Polyester coating (PE Aluminum Coil):
It is a kind of anti-UV ultraviolet coating. Polyester resin is a polymer containing an ester bond in the main chain as a monomer. Ton acid resin is added. The ultraviolet absorber can be divided into matt and high gloss series according to the gloss. Especially suitable for interior decoration and advertising boards.
Fluorocarbon coating (PVDF Aluminum Coi):
It is made by mixing fluorocarbon resin with fluoroalkene as the basic monomer, pigment, alcohol ester solvent, and additives. After baking at high temperatures to form a film, the molecular structure in the coating is tight, and it has super weather resistance. Fluorocarbon coatings can be divided into traditional fluorocarbon and nano-fluorocarbon coatings according to the surface film-forming structure. Especially suitable for decoration and display of indoor and outdoor decorations, commercial chains, and exhibition advertisements in public places.
